SEG Warehouse

FastFrames

Buy FastFrames structures, kits, graphics, and parts.

Modular trade-show frame system

Build the frame you need now.Reuse the parts later.

Plan and buy structures, starter kits, replacement graphics, or individual parts.

FastFrames Starter kit, assembled and lit at a trade show

Start here

What do you need?

One system.
Choose your capacity.

One kit. Reconfigure it for the next show.

Every kit builds any of 39 standard sizes. Pick how many frames you need up at once.

8×8 to 20×204, 5, or 6 ft high

Find your FastFrames kit

Same modular system. More frames at once.

For one frame at a time

Starter

1 frame at a time

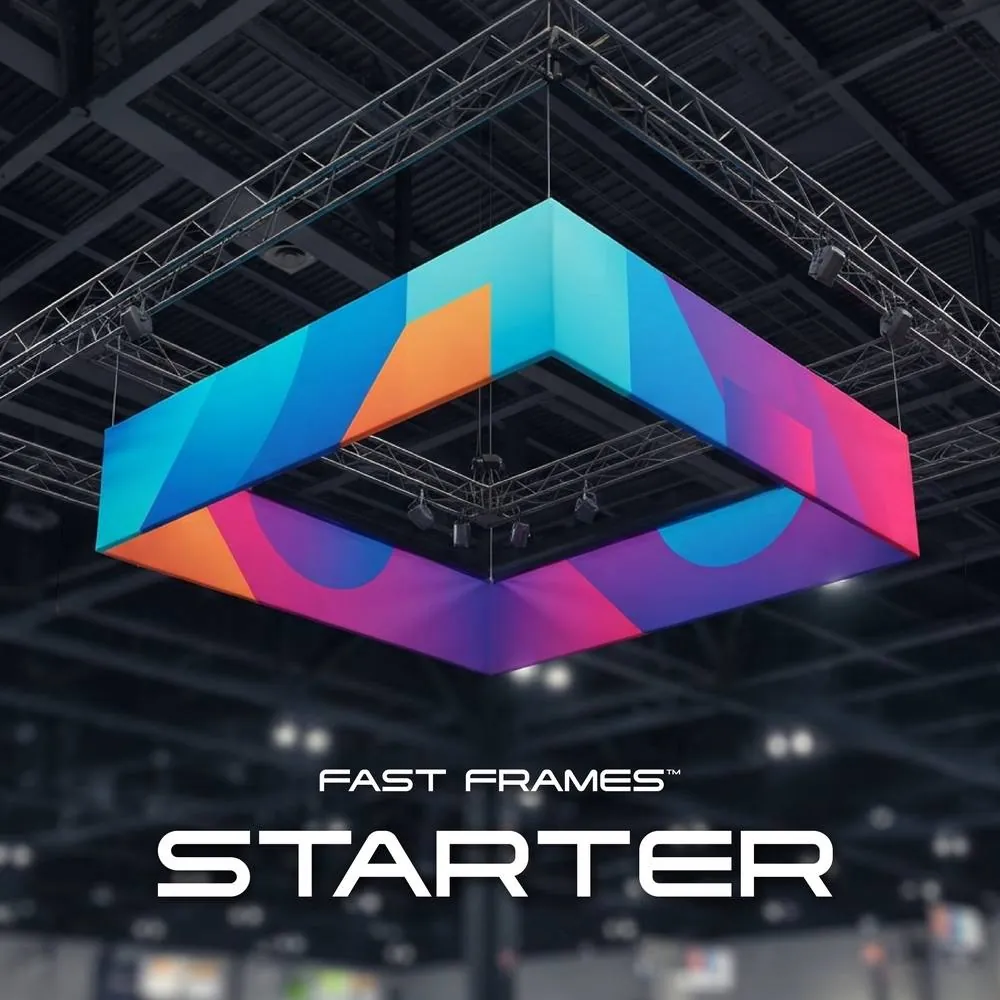

FastFrames Starter Kit shown with printed graphics, ordered separately

$5,725

Hardware kit price

ReSkin graphics ordered separately.

Choose Starter
Standard sizes
39
Travel bags
1 included
Hardware parts
372
See Starter contents & shipping

Any of 39 standard sizes, one frame at a time. Build a 10×10 this week and a 20×20 next. Includes 1 travel bag.

The starter set of a modular system. Rebuild the same parts into 39 standard sizes and custom rectangles, show after show.

Custom rectangles too, from the same parts. Graphics are ordered separately as ReSkins.

Frame tubes

Standard lengths. Combine them for any size from 8×8 to 20×20, square or not.

  • 12 43 inch vertical support tubes
  • 12 55 inch vertical support tubes
  • 12 67 inch vertical support tubes
  • 20 45 inch frame tubes
  • 12 57 inch frame tubes
  • 28 69 inch frame tubes

Corners, splicers, and adapters

Connection hardware that turns the tubes into a frame.

  • 8 3-way corner connectors
  • 24 straight splicers
  • 24 threaded tube adapters

Fasteners and rigging hardware

Screws, barrel nuts, and eyebolts included with the kit.

  • 96 threaded barrel nuts
  • 64 thumb screws
  • 32 flat head screws
  • 12 button head screws
  • 12 2.50 inch eyebolts
  • 4 0.75 inch eyebolts

Travel bags

One travel bag per frame, for the trip to the show site.

  • 1 travel bag

Shipping

This kit ships as a multi-carton parcel shipment: 6 parcel cartons. Total packed shipping weight is 254.5 lb; the heaviest carton is 49.0 lb.

FastFrames hardware can be ordered without graphics. Replacement printed graphics are ordered separately as ReSkins.

For a main frame plus a second

Plus

2 frames at once

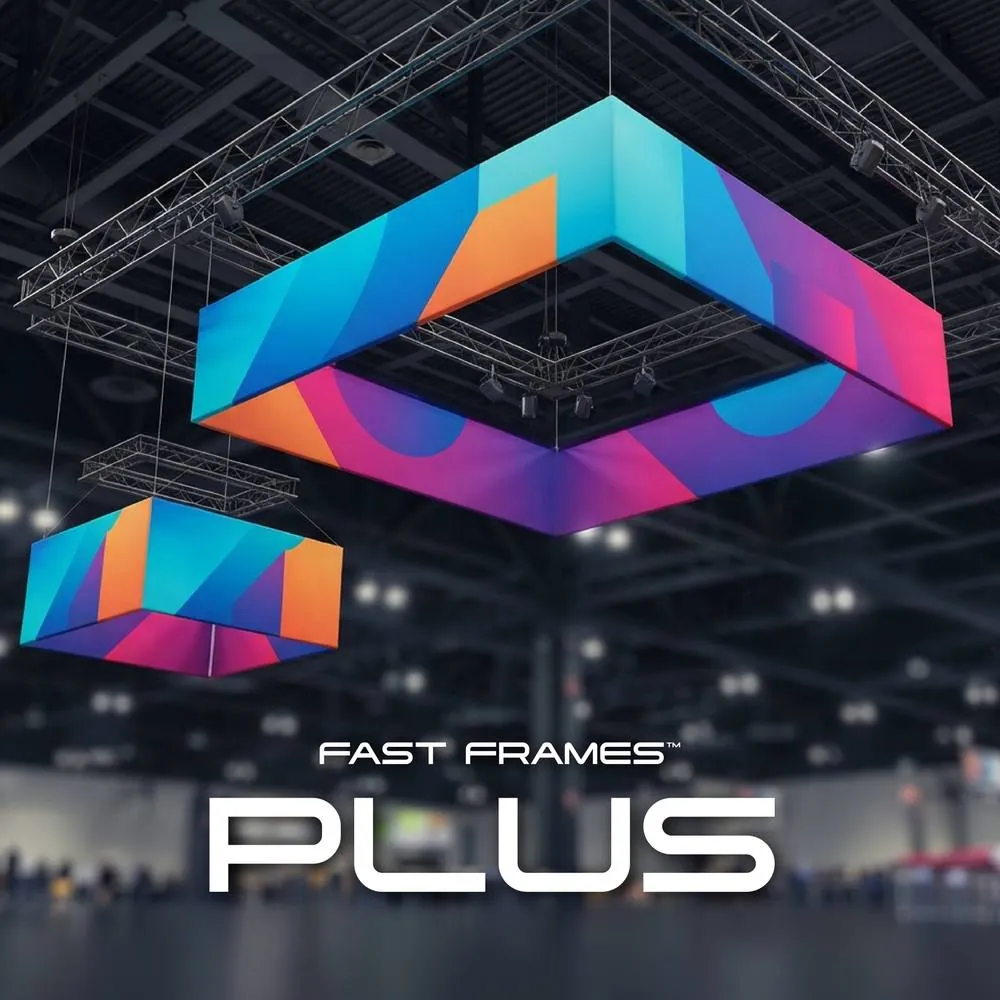

FastFrames Plus Kit shown with printed graphics, ordered separately

$7,804

Hardware kit price

ReSkin graphics ordered separately.

Choose Plus
Standard sizes
39
Travel bags
2 included
Hardware parts
560
See Plus contents & shipping

Any of 39 standard sizes, two frames up at once. Corners and tubes for a main frame plus a second size. Includes 2 travel bags.

Two frames out at the same time from one modular set.

Graphics are ordered separately as ReSkins.

Frame tubes

Standard lengths. Combine them for any size from 8×8 to 20×20, square or not.

  • 16 43 inch vertical support tubes
  • 16 55 inch vertical support tubes
  • 16 67 inch vertical support tubes
  • 40 45 inch frame tubes
  • 24 57 inch frame tubes
  • 40 69 inch frame tubes

Corners, splicers, and adapters

Connection hardware that turns the tubes into a frame.

  • 16 3-way corner connectors
  • 32 straight splicers
  • 32 threaded tube adapters

Fasteners and rigging hardware

Screws, barrel nuts, and eyebolts included with the kit.

  • 144 threaded barrel nuts
  • 96 thumb screws
  • 48 flat head screws
  • 16 button head screws
  • 16 2.50 inch eyebolts
  • 8 0.75 inch eyebolts

Travel bags

One travel bag per frame, for the trip to the show site.

  • 2 travel bags

Shipping

This kit ships as a multi-carton parcel shipment: 9 parcel cartons. Total packed shipping weight is 396.9 lb; the heaviest carton is 49.0 lb.

FastFrames hardware can be ordered without graphics. Replacement printed graphics are ordered separately as ReSkins.

For three frames at once

Pro

3 frames at once

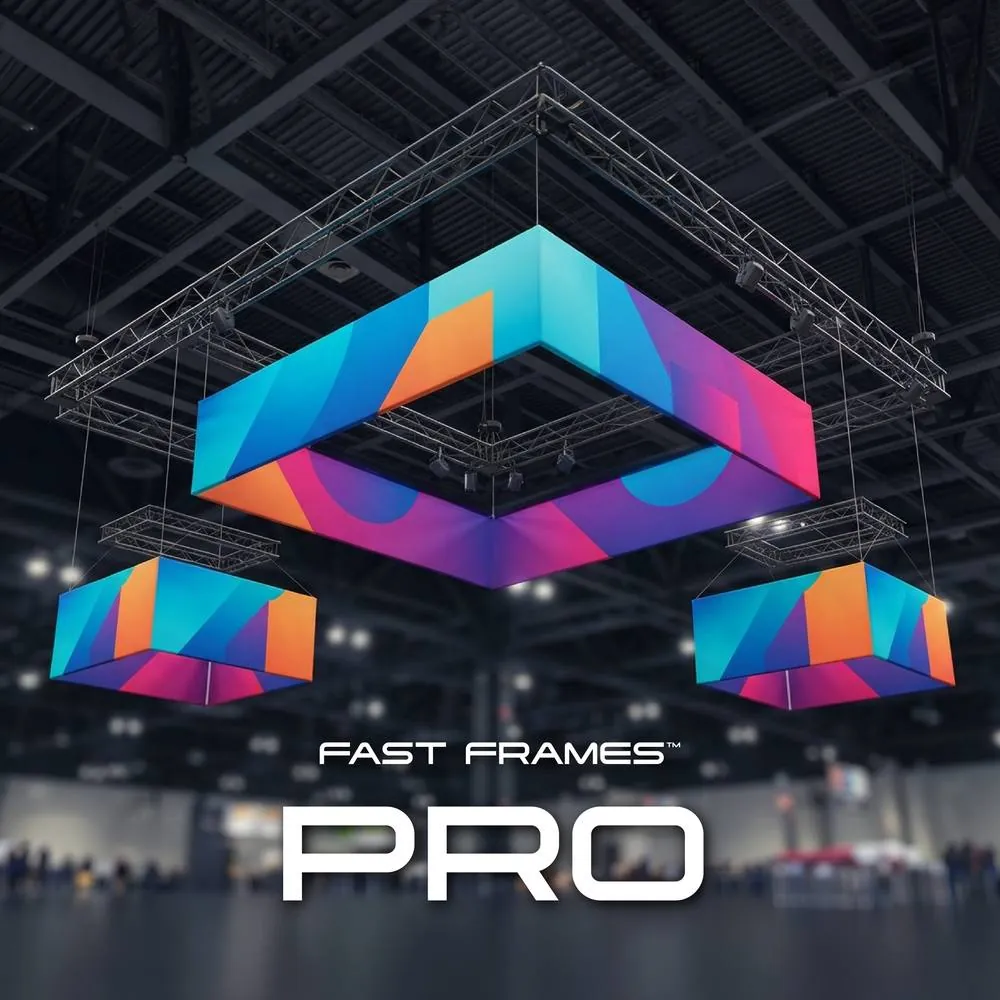

FastFrames Pro Kit shown with printed graphics, ordered separately

$10,587

Hardware kit price

ReSkin graphics ordered separately.

Choose Pro
Standard sizes
39
Travel bags
3 included
Hardware parts
748
See Pro contents & shipping

Any of 39 standard sizes, three frames up at once, from 8×8 to 20×20. Includes 3 travel bags.

Three frames out at the same time from one modular set.

Graphics are ordered separately as ReSkins.

Frame tubes

Standard lengths. Combine them for any size from 8×8 to 20×20, square or not.

  • 20 43 inch vertical support tubes
  • 20 55 inch vertical support tubes
  • 20 67 inch vertical support tubes
  • 60 45 inch frame tubes
  • 36 57 inch frame tubes
  • 52 69 inch frame tubes

Corners, splicers, and adapters

Connection hardware that turns the tubes into a frame.

  • 24 3-way corner connectors
  • 40 straight splicers
  • 40 threaded tube adapters

Fasteners and rigging hardware

Screws, barrel nuts, and eyebolts included with the kit.

  • 192 threaded barrel nuts
  • 128 thumb screws
  • 64 flat head screws
  • 20 button head screws
  • 20 2.50 inch eyebolts
  • 12 0.75 inch eyebolts

Travel bags

One travel bag per frame, for the trip to the show site.

  • 3 travel bags

Shipping

This kit ships as a multi-carton parcel shipment: 12 parcel cartons. Total packed shipping weight is 541.4 lb; the heaviest carton is 49.0 lb.

FastFrames hardware can be ordered without graphics. Replacement printed graphics are ordered separately as ReSkins.

Planning more than one frame? Check your exact size combination in the planner before ordering. Available combinations depend on the parts required for each frame.

Already running FastFrames?Open build sheets for supported frame sizes.
